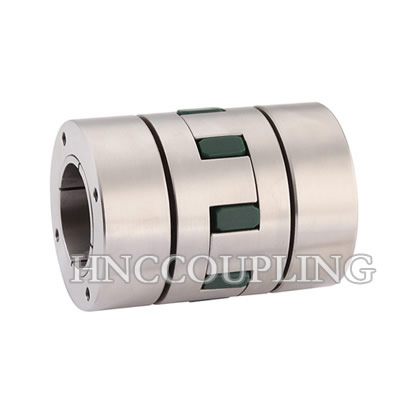

Jaw Coupling With Taper Lock
Product Name:Jaw Coupling With Taper Lock;
Type:HJTA / HJTS Series Taper Lock Coupling;
Diamenter of the shaft hole:8~65 mm;
Maximum diameter D:30~120mm
Material:Aluminum,Stainless Steel
Nominal torsion:14.8~1040 N.m
Description
The following is the stainless steel Taper Lock coupling data:
| Type | d1 d2 (mm) | D (mm) | L (mm) | LF (mm) | LP (mm) | M | Nominal Torque (N.M) | Max Speed (RPM) |
| HJTS-30X50 | 8~14 | 30 | 50 | 30.6 | 10.9 | M3 | 14.8 | 20000 |
| HJTS-35X55 | 8~19 | 35 | 55 | 33.3 | 11.5 | M4 | 16 | 18000 |
| HJTS-40X55 | 10~22 | 40 | 55 | 34.5 | 13.7 | M4 | 19 | 18000 |
| HJTS-40X66 | 10~22 | 40 | 66 | 40 | 13.7 | M4 | 19 | 15000 |
| HJTS-55X78 | 12~32 | 55 | 78 | 46.4 | 16.1 | M5 | 68 | 13000 |
| HJTS-65X90 | 17~38 | 65 | 90 | 53.5 | 16.7 | M5 | 190 | 10500 |
| HJTS-80X114 | 19~45 | 80 | 114 | 68 | 22.5 | M6 | 270 | 8600 |
| HJTS-95X126 | 20~50 | 95 | 126 | 75 | 24.0 | M8 | 440 | 7200 |
| HJTS-105X140 | 22~60 | 105 | 140 | 83.2 | 26.4 | M8 | 720 | 5800 |
| HJTS-120X160 | 24~65 | 120 | 160 | 93.7 | 27.4 | M10 | 1040 | 5200 |
