Disc Coupling
Product Name:Disc Coupling;
Type:HD Type Disc Shaft Coupling;
Material:Steel
Model:
HD1(Single Disc Coupling);
HD2(Double Disc Coupling)
Description
Disc coupling Structure features:
Carrying capacity, and wide applicable scope, long service life,
Working temperature: – 20 to 250 degrees Celsius, do not need lubrication,
Compared to the gear coupling, simple structure, easy processing and maintenance, small vibration, no noise, suitable for high speed
Convenient assembly and inspection
Applied to metallurgy, mining, chemical, shipbuilding, pump and fan, etc.
Disc coupling main dimension:

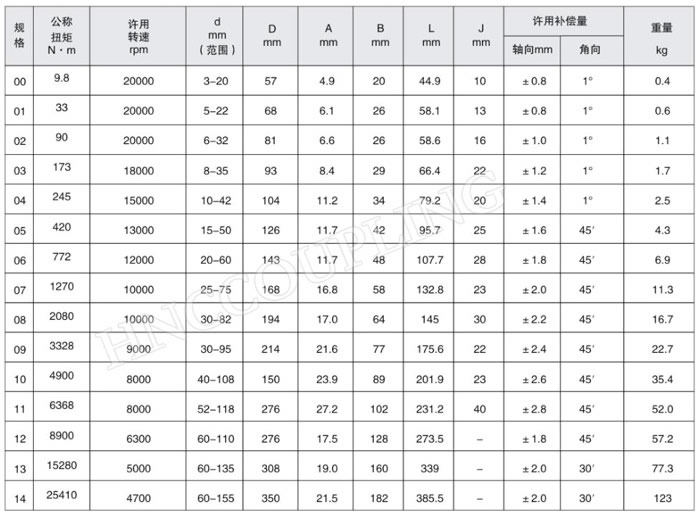

- Single Disc Coupling
1:Scope of application:
Type:HD1
Bore:3-1030mm;
Diamenter:57-2400mm;
N.m:9.8-8100000
2:Dimension:

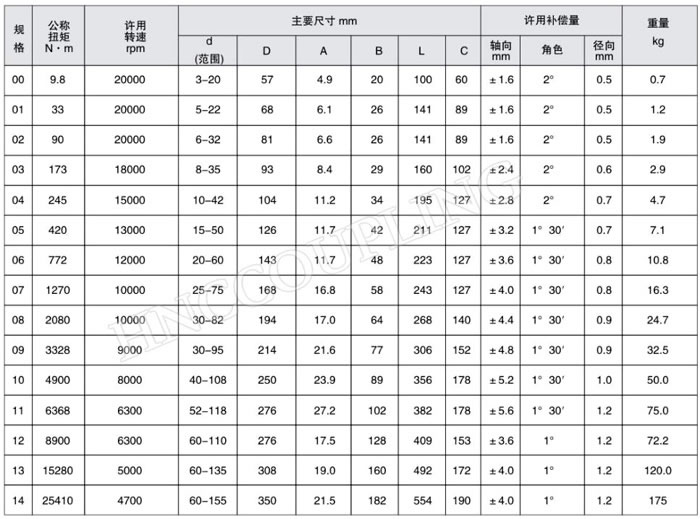

- Double Disc Coupling
1:Scope of application:(Same as single disc coupling)
Type:HD2
Bore:3-1030mm;
Diamenter:57-2400mm;
N.m:9.8-8100000
2:Dimension:
