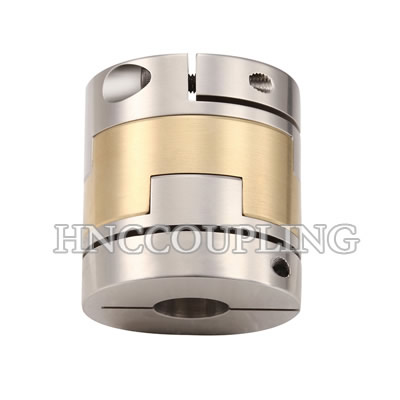

Clamp Type Oldham Coupling
Product name:Clamp Type Oldham Coupling,Clamp Oldham Coupling
Type:HOCS Clamp Type Oldham Shaft Coupling;
Bore:4~35mm;
Diamenter:14.5~70mm;
Material: Stainless Steel; Aluminium
Adjust loop material：aluminium bronze; PA66
Description
Clamp Type Oldham Coupling Main Dimensions:
| Type | d1 d2
(mm) |
D
(mm) |
L
(mm) |
LF
(mm) |
LP
(mm) |
F
(mm) |
M | Nominal Torque
(N.M) |
Max Speed
(RPM) |
| HOCS-14.5X18.7 | 4~6.35 | 14.5 | 18.7 | 9.3 | 5.5 | 3.3 | M2.5 | 3 | 8000 |
| HOCS-16.8X24.2 | 4~6.35 | 16.8 | 24.2 | 12.1 | 6.2 | 4.2 | M3 | 5 | 6500 |
| HOCS-20X27.3 | 5~10 | 20 | 27.3 | 12.6 | 7.3 | 4.5 | M3 | 7 | 5500 |
| HOCS-26X30.5 | 5~12 | 26 | 30.5 | 15.21 | 7.5 | 5.0 | M4 | 10 | 4500 |
| HOCS-30X32.8 | 5~14 | 30 | 32.8 | 16.4 | 8.8 | 6.0 | M4 | 30 | 4500 |
| HOCS-34X34.5 | 5~16 | 34 | 34.5 | 17.25 | 8.5 | 6.0 | M4 | 32 | 3500 |
| HOCS-38X39.7 | 5~20 | 38 | 39.7 | 19.85 | 9.7 | 7.0 | M5 | 50 | 3500 |
| HOCS-45X46 | 8~22 | 45 | 46 | 23 | 13.6 | 6.0 | M5 | 50 | 7000 |
| HOCS-55X57 | 10~25 | 55 | 57 | 28.5 | 15.4 | 7.0 | M6 | 75 | 7000 |
| HOCS-70X77 | 12~35 | 70 | 77 | 38.5 | 17 | 8.5 | M8 | 95 | 6000 |
