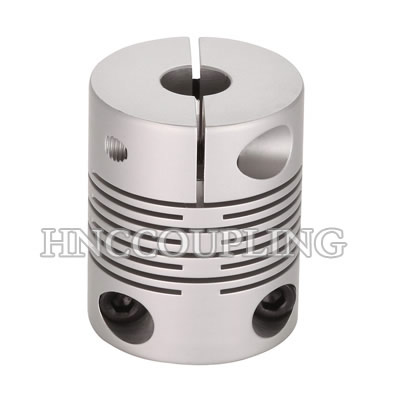

Beam Coupling
Product Name:Beam Coupling;
Type:HBC1 Type Beam Shaft Coupling;
Diamenter of the shaft hole:3-16 mm;
Nominal torsion:0.75-4.5 N.m
Description
Beam Coupling Feature
To be able to overcome radial vibration，The transmission is smooth and noiseless.It was a new type of coupling in the USA, Germany and Japan in the 1980s.But compared with the universal shaft, the area is small. Simple structure, convenient processing and easy installation, it is widely used in servo motors.
1. Zero-rotation clearance;
2. Elastic compensation for radial, angular and axial deviation;
3. Materials: high strength dural aluminum;
| HNCCOUPLING Beam Coupling Type | d1 d2
(mm) |
D
(mm) |
L
(mm) |
L1
(mm) |
L2
(mm) |
F
(mm) |
M | Nominal Torque
(N.M) |
Max Speed
(RPM) |
| HBC1-16X17.5 | 3~6 | 16 | 17.5 | 0.55 | 1.18 | 3 | M2.5 | 0.75 | 8000 |
| HBC1-19X20 | 3~8 | 19 | 20 | 0.55 | 1.18 | 3.4 | M2.5 | 1.5 | 8000 |
| HBC1-24X25 | 4~11 | 24 | 25 | 0.55 | 1.49 | 4.25 | M3 | 2.2 | 6200 |
| HBC1-29X30 | 5~12.7 | 29 | 30 | 0.55 | 1.81 | 5.1 | M3 | 3 | 5000 |
| HBC1-34X35 | 8~16 | 34 | 35 | 0.8 | 2.09 | 6 | M3 | 4.5 | 4300 |
